Introduction
In the previous chapters, we learned about the refraction of light by lenses, the nature of images formed by lenses, and their applications. This chapter extends those concepts to study the human eye, optical phenomena in nature, and corrective measures for vision defects.
The Human Eye
The human eye is a crucial sense organ that enables us to see the world in all its colors. It functions similarly to a camera, with a lens system forming an image on a light-sensitive screen called the retina.
Structure of the Human Eye
- Cornea: A transparent, curved membrane at the front of the eye that allows light to enter and provides most of the eye's focusing power.
- Iris: A muscular diaphragm behind the cornea, controlling the size of the pupil and regulating the amount of light entering the eye.
- Pupil: The adjustable opening in the iris that controls the light entering the eye.
- Lens: A transparent, flexible structure that changes shape to focus light onto the retina.
- Retina: A layer at the back of the eye containing light-sensitive cells (rods and cones) that convert light into electrical signals sent to the brain via the optic nerve.
 |
| Source: NCERT |
Power of Accommodation
The eye lens can change its curvature with the help of ciliary muscles to focus on objects at various distances. This ability is known as the power of accommodation.
- Distant Vision: When viewing distant objects, the ciliary muscles relax, making the lens thinner and increasing its focal length.
- Near Vision: For close objects, the ciliary muscles contract, making the lens thicker and decreasing its focal length.
Vision Defects and Corrections
Myopia (Nearsightedness)
- Cause: Elongation of the eyeball or excessive curvature of the cornea.
- Correction: Concave lenses that diverge light rays, helping them focus on the retina.
 |
| Source: NCERT |
Hypermetropia (Farsightedness)
- Cause: Shortening of the eyeball or insufficient curvature of the cornea.
- Correction: Convex lenses that converge light rays to focus on the retina.
 |
| Source: NCERT |
Presbyopia
- Cause: Age-related loss of elasticity in the eye lens.
- Correction: Bifocal lenses that combine concave and convex lenses for distant and near vision correction.

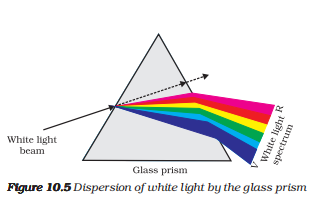

Refraction of Light Through a Prism
A prism refracts light, causing it to split into its constituent colors (dispersion). This phenomenon is responsible for the formation of rainbows and the blue color of the sky.
 |
| Source: NCERT |
 |
| Source: NCERT |
Atmospheric Refraction
Atmospheric refraction is a phenomenon where light rays bend as they pass through the Earth's atmosphere due to the varying refractive indices of different layers of air, caused by temperature and density differences.
Flickering of Objects
When you observe objects through a stream of hot air, such as above a fire or radiator, you notice a flickering effect. This is because the hot air is less dense and has a lower refractive index than the cooler air above it. The varying refractive indices cause the light to bend in different directions, making the object appear to waver. This is a localized example of atmospheric refraction.
Twinkling of Stars
The twinkling of stars is another effect of atmospheric refraction. As starlight enters the Earth's atmosphere, it is refracted multiple times due to the changing refractive index of the air. This causes the apparent position of the star to shift, making it seem to twinkle. Stars appear to twinkle because they are point sources of light. The constantly changing atmospheric conditions cause the light from the star to flicker, making the star appear brighter or dimmer at times.
 |
| Source: NCERT |
Why Planets Don’t Twinkle
Planets, unlike stars, are closer to the Earth and appear as extended sources of light. They are composed of numerous point sources of light. The variations in the light from these multiple sources average out, nullifying the twinkling effect. Hence, planets do not twinkle like stars.
Advance Sunrise and Delayed Sunset
The Sun is visible to us about two minutes before the actual sunrise and remains visible for about two minutes after the actual sunset. This is because of atmospheric refraction, which bends the light from the Sun, making it appear above the horizon when it is actually below it. This phenomenon also causes the apparent flattening of the Sun's disc during sunrise and sunset.
 |
| Source: NCERT |
Scattering of Light
Scattering of light is responsible for various natural phenomena, including the blue color of the sky and the reddish hues at sunrise and sunset. When light interacts with particles in the atmosphere, it is scattered in different directions.
Tyndall Effect
The Tyndall effect occurs when light passes through a colloidal solution, making its path visible due to scattering by colloidal particles. This effect can be observed when sunlight enters a smoke-filled room or passes through a dense forest canopy. The scattered light makes the particles visible.
Why is the Sky Blue?
The blue color of the sky is due to the scattering of shorter wavelengths of light by air molecules and fine particles in the atmosphere. These particles scatter blue light more effectively than red light, which has a longer wavelength. As a result, the scattered blue light reaches our eyes, making the sky appear blue. At high altitudes, where scattering is less prominent, the sky appears dark.
Red Color of Danger Signals
Danger signals are red because red light is scattered the least by fog or smoke. This allows the red light to travel farther and remain visible, making it effective for warnings and signals.
Frequently Asked Questions (FAQs)
General FAQs
What causes atmospheric refraction? Atmospheric refraction is caused by the varying refractive indices of different layers of air due to temperature and density differences.
Why do stars twinkle? Stars twinkle because the light from these point sources is refracted multiple times as it passes through the Earth's atmosphere, causing the apparent position to shift and the light to flicker.
Why don't planets twinkle? Planets do not twinkle because they are closer to Earth and appear as extended sources of light. The variations in light from these multiple point sources average out, nullifying the twinkling effect.
What is the Tyndall effect? The Tyndall effect is the scattering of light by colloidal particles, making the path of the light beam visible.
Why is the sky blue? The sky appears blue because air molecules and fine particles in the atmosphere scatter shorter wavelengths of light (blue) more effectively than longer wavelengths (red).
Why are danger signals red? Danger signals are red because red light is scattered the least by fog or smoke, allowing it to travel farther and remain visible.
Vision Defects FAQs
What is the power of accommodation? The ability of the eye lens to adjust its focal length to focus on objects at different distances.
What is myopia and how is it corrected? Myopia, or nearsightedness, is a condition where distant objects appear blurry. It is corrected using concave lenses.
What causes hypermetropia and how is it treated? Hypermetropia, or farsightedness, is caused by a shorter eyeball or a flatter cornea. It is treated using convex lenses.
Can people with spectacles donate their eyes? Yes, individuals with spectacles, as well as those who have undergone cataract surgery, can donate their eyes.
By understanding these concepts, we gain insight into the intricate mechanisms of our vision and the fascinating phenomena that light can create in our world.
Multiple Choice Questions (MCQs)
What is the function of the cornea in the human eye?
A. It controls the size of the pupil.
B. It allows light to enter and provides most of the eye's focusing power.
C. It contains light-sensitive cells.
D. It adjusts the focal length of the eye.Which part of the eye is responsible for controlling the amount of light entering the eye?
A. Retina
B. Cornea
C. Lens
D. IrisWhat causes myopia (nearsightedness)?
A. Shortening of the eyeball
B. Excessive curvature of the cornea
C. Loss of elasticity in the eye lens
D. Insufficient curvature of the corneaHow is hypermetropia (farsightedness) corrected?
A. Using concave lenses
B. Using convex lenses
C. Using bifocal lenses
D. Using cylindrical lensesWhat is the phenomenon called when light splits into its constituent colors as it passes through a prism?
A. Refraction
B. Dispersion
C. Reflection
D. DiffractionWhy do stars twinkle?
A. Because they are very close to Earth
B. Due to the varying refractive indices in the Earth's atmosphere
C. Because they are extended sources of light
D. Due to the scattering of light by air moleculesWhy don't planets twinkle like stars?
A. They are closer to Earth and appear as extended sources of light.
B. They are further from Earth than stars.
C. They emit their own light.
D. They have a larger surface area.What is responsible for the blue color of the sky?
A. Reflection of light by the Earth's surface
B. Scattering of shorter wavelengths of light by air molecules
C. Absorption of blue light by the atmosphere
D. Refraction of light by water droplets in the atmosphere
